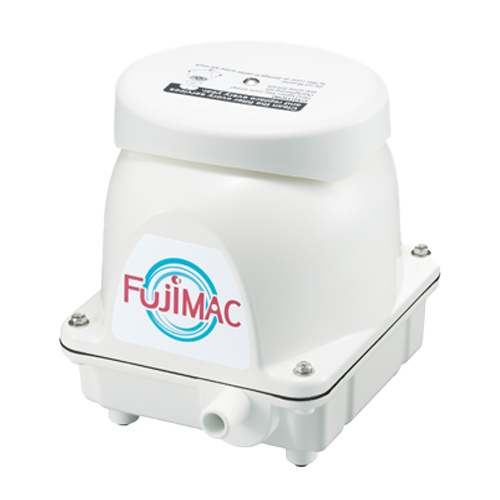

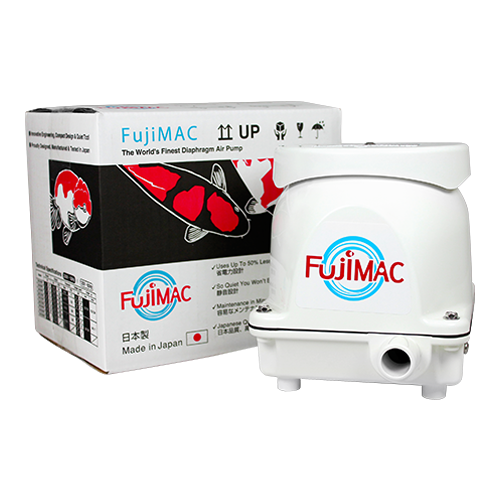

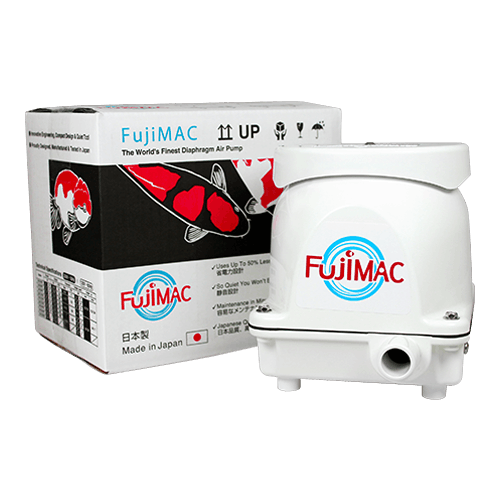

FujiMAC Air Pump

Quality Beyond Compare

Uses up to 40% less power than competitors, offering almost twice the air per watt
Highly perfected low noise design
Proprietary auto-stopper system eliminates damage risk

Built To Last

Almost 30% less heat generation than the competition
Specially coated, aluminum die-cast housing to weather any storm
Diaphragm designed with decades of experience
2 year unconditional warranty

Maintenance In Minutes

Auto stopper reduces accidental damage
Fewer replacement parts means lower down time
Easy replacement of wearing parts reduces long term cost

Available from:
FujiMac Logo

Download The FujiMAC Instruction Manual

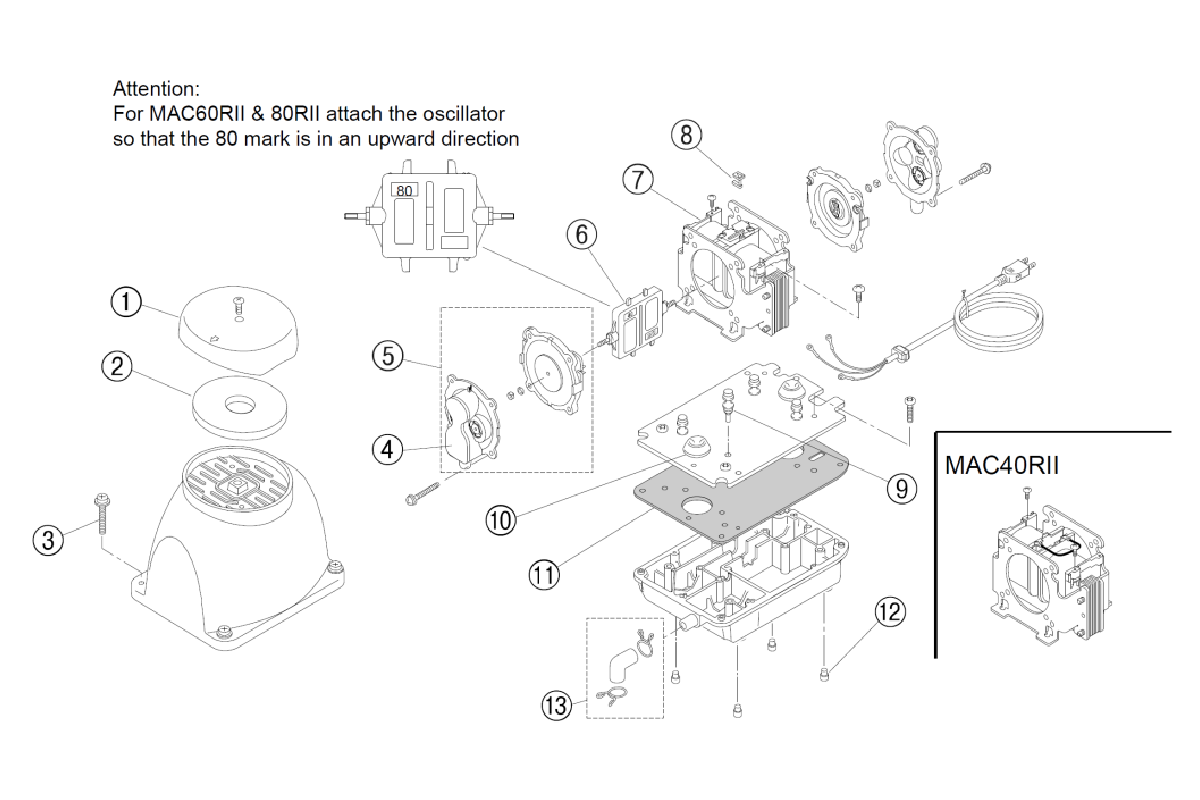

FujiMAC Models 40, 60 & 80

1. N6 / N8* Filter Cover
2. N6 / N8* Filter
3. M5-20 Cross Recessed Hexagonal Head Bolt (4 pcs.)
4. N6 / T10* Compression Chamber
5. N6 / T10* Diaphragm Assembly
6. T6 / R10* Oscillator Rod
7. T4-2 / T6-2 / T8-2* Solenoid w/ Auto Stop Assembly (8 Screws)

8. N6 Auto-Stop Piece
9. N6 Shock Absorbing Rubber (4 pcs.)
10. N6 Rubber Grommet
11. R10 Tank Gasket
12. N6 Rubber Foot (4 pcs.)
13. Exhaling Rubber Hose Assembly

NOTE: The diagrams and the name of the part may not be exact to your specific model of pump. Review manual for specific part information.

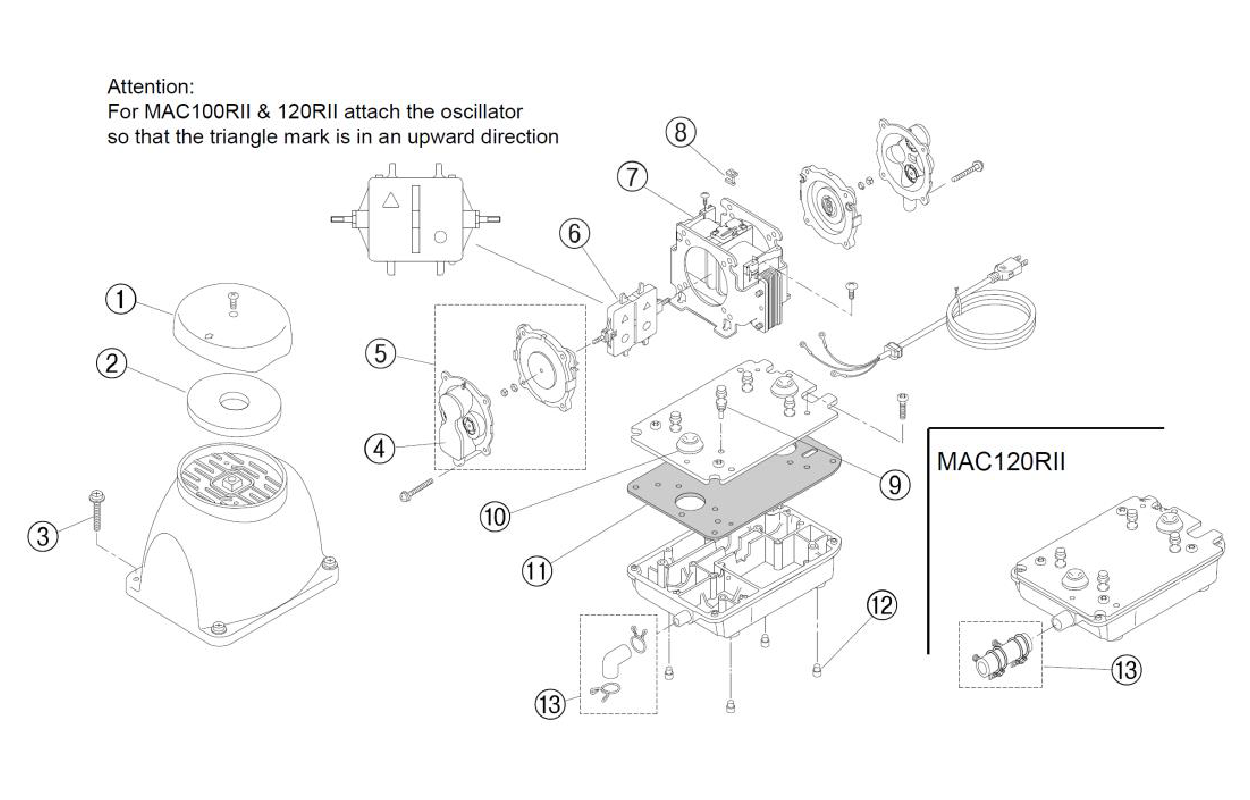

FujiMAC Models 100 & 120

1. N8 Filter Cover
2. N8 Filter
3. M5-20 Cross Recessed Hexagonal Head Bolt (4 pcs.)
4. T10 Compression Chamber
5. T10 / T30 Diaphragm Assembly
6. T10 / R25 Oscillator Rod
7. T10-2 / T12-2 Solenoid w/ Auto Stop Assembly (8 Screws)

8. N6 / T30 Auto-Stop Piece
9. N6 Shock Absorbing Rubber (4 pcs.)
10. N6 Rubber Grommet
11. R10 Tank Gasket
12. N6 Rubber Foot (4 pcs.)
13. A4 / E2 Exhaling Rubber Hose Assembly

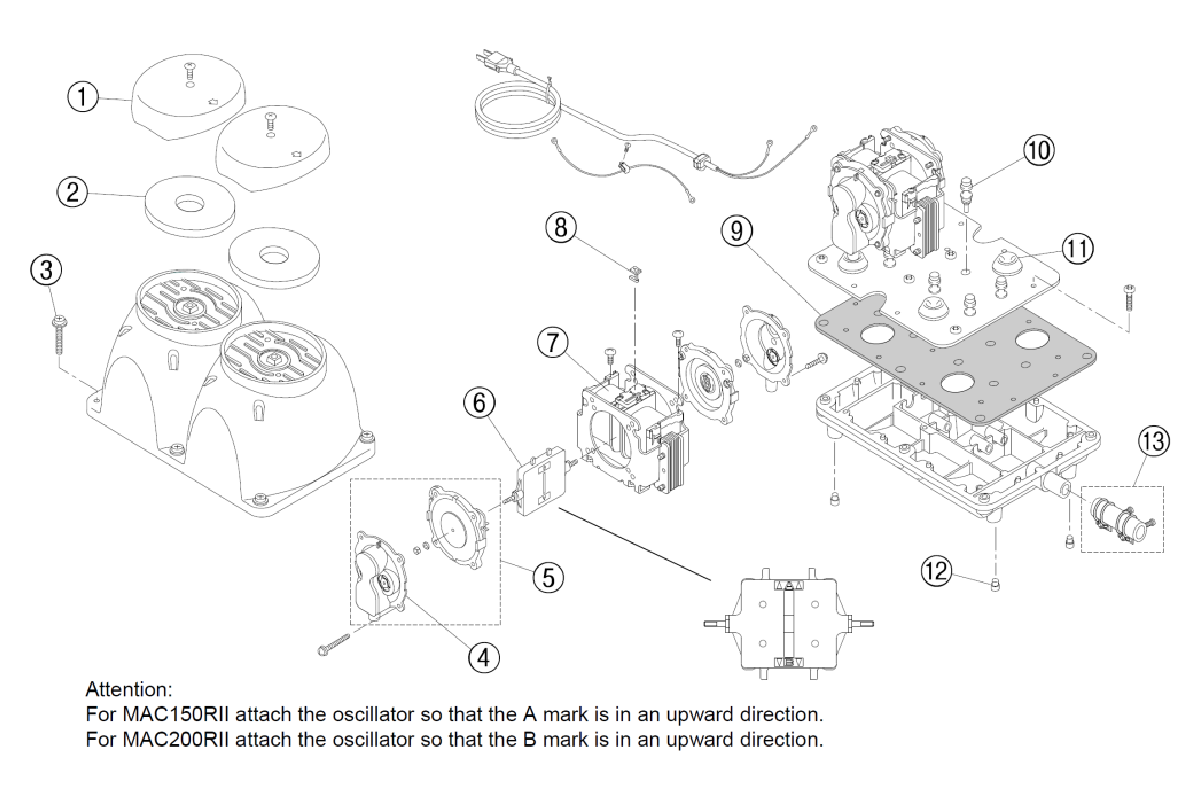

FujiMAC Models 150 & 200

1. N8 Filter Cover
2. N8 Air Filter (White)
3. M5-20 Cross Recessed Hexagonal Head Bolt (6 pcs.)
4. T10 Compression Chamber
5. T10 Diaphragm Assembly
6. R16 Oscillator Rod
7. T15-2 / T20-2 Solenoid w/ Auto Stop Assembly (8 Screws)

8. N6 Auto-Stop Piece
9. N0 Tank Gasket
10. N6 Shock Absorbing Rubber (4 pcs.)
11. N6 Rubber Grommet
12. N6 Rubber Foot (4 pcs.)
13. E2 Exhaling Rubber Hose Assembly

Warning & Safeguards

This product is for use on a nominal 120-V circuit. Ensure voltage shown on the label correlates with the mains supply voltage in your area. The air pump must be connected to a grounded, metallic, permanent wiring system, or an equipment-grounding terminal or lead on the product. In-the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. Unplug or switch off all appliances in the aquarium or pond before carrying out maintenance.

Install the FujiMAC air pump at a higher position than water level in order to prevent water backflow. Do not immerse the air pump in the water. If it falls in the water, do not reach for it and immediately unplug. Place the air pump in a safe and well ventilated area that provides easy access for inspection and maintenance. The air pump must be on a level surface away from direct sunlight (preferably undercover). When the air pump is on, it is extremeley hot. Do not touch directly, as it may cause injury and burn.

Maintenance & Care

Routine maintenance is required to ensure the maximum performance and longevity of the FujiMac Air Pump. Prior to any maintenance or appliance cleaning or repair, unplug the power cord and be sure let the pump cool down before opening the cover. The FujiMAC Air Filter should be inspected and cleaned every 3 or 4 months and replace every year. Replace the Diaphragm / Valve every year. If the diaphragm/valve becomes damaged in models (60 - 200), the automatic-stop function will engage. Further action must be taken to rectify the problem or deterioration of the use point due to an inoperable air pump may result.

Activating Online

To activate your 2 year warranty, complete the online form below within 15 days of purchase. Our customer service team will contact you for additional details. You can also activate your warranty by mailing this completed form to our address.

Please Note: The date of purchase and picture or scanned copy of the receipt is required to activate your warranty. If you are having trouble uploading, contact our customer service team at fish@hikariusa.com for more assistance. Please keep a record of your reponse and purchase history in a safe place.

Activate 2 Year Warranty:

Name *required

Address *required

City *required

State *required

Zip Code *required

Phone *required

Email *required

Model *required

Serial Number *required

Purchase Details:

Retail Store Name *required

Store Address *required

Store City, State, Zip Code *required

Date of purchase *required

Prove you're human! What is 3 + 5? *required

Please attach a copy of your receipt *required

For privacy concerns, click here to review the Hikari^® USA's Privacy Policy. Allow 1 to 2 weeks for processing. For questions or concerns regarding your submission, email our customer service team at fish@hikariusa.com or call our toll-free line at 800-621-5619

Activating Your Warranty Through Mail

You can also activate your warranty by printing out the following PDF and mailing the completed form to the address listed, along with a scanned copy of your receipt within 15 days of purchase. The Our customer service team will contact you for additional details.

Download the FujiMAC Warranty Form

Pump Size(s)

Item #	Model	Air Flow	Pressure	Power Usage	Noise Level	Outlet Pipe Size

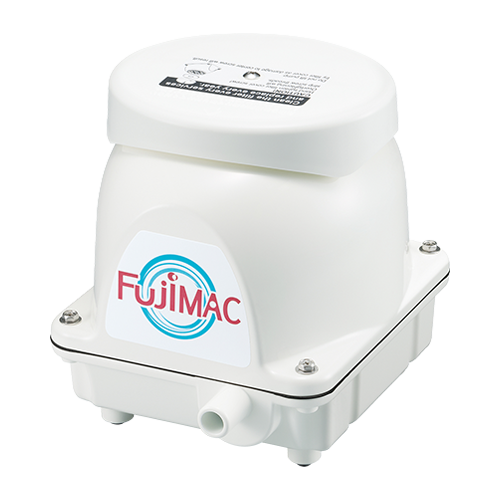

#48500	FujiMAC 40K	1.4 CFM	1.7 PSI	24 watts	37dB	Internal 1/2" - External 3/4"
#48501	FujiMAC 60K	2.1 CFM	2.2 PSI	35 watts	37dB	Internal 1/2" - External 3/4"
#48502	FujiMAC 80K	2.8 CFM	2.2 PSI	47 watts	39dB	Internal 1/2" - External 3/4"
#48503	FujiMAC 100K	3.5 CFM	2.6 PSI	68 watts	40dB	Internal 1/2" - External 3/4"
#48504	FujiMAC 120K	4.2 CFM	2.6 PSI	86 watts	41dB	Internal 3/4" - External 1"
#48505	FujiMAC 150K	5.3 CFM	2.9 PSI	100 watts	41dB	Internal 3/4" - External 1"
#48506	FujiMAC 200K	7.1 CFM	2.9 PSI	140 watts	43dB	Internal 3/4" - External 1"
#48507	FujiMAC 250K	8.8 CFM	2.9 PSI	186 watts	48dB	Internal 3/4" - External 1"
#48508	FujiMAC 300K	10.6 CFM	2.9 PSI	250 watts	50dB	Internal 3/4" - External 1"
