Professional Grade Water Pump

Vortex Rotor Blade
High Flow Rate
Rare-Earth Magnet
Multi-purpose

Energy Efficient Design

Low Heat Emission
Double Layer Bracket
Ceramic Shaft & Bearings

Available From:

Click Here to download the Complete Rio^® Hyper Flow manual and instructions.

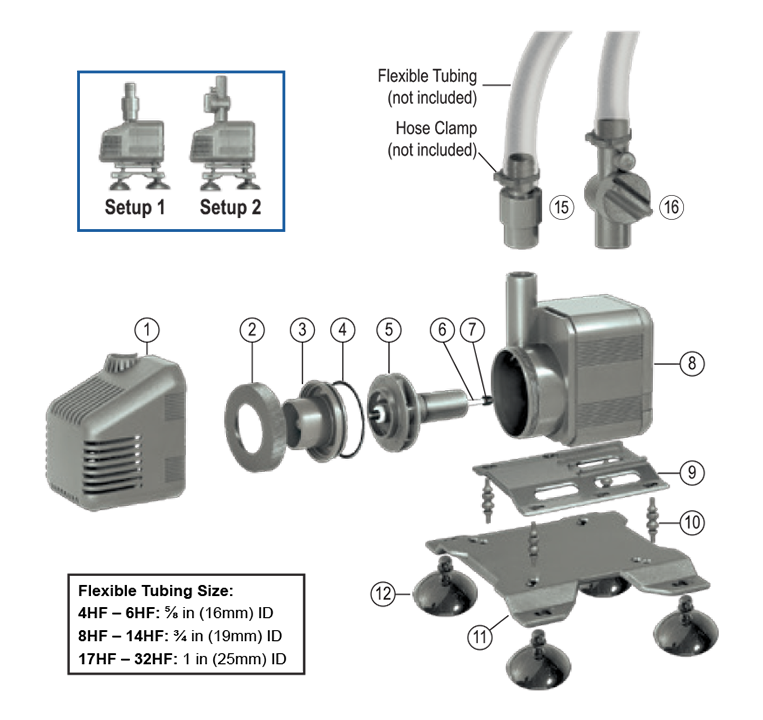

Application I

Fountains & Waterfalls

1. Main Housing Strainer
2. Housing Endcap Retainer
3. Housing Endcap
4. O-Ring
5. Vortex Impeller Assembly
6. Ceramic Shift
7. Shaft Endcap
8. Morot Housing
9. Suction Cup Bracket
10. Bushings
11. Vibration Plate
12. Suction Cup
15. Outlet Pipe Adapter
16. Flow Control

Application II

In-Tank Circulation

1. Main Housing Strainer
2. Housing Endcap Retainer
3. Housing Endcap
4. O-Ring
5. Vortex Impeller Assembly
6. Ceramic Shift
7. Shaft Endcap
8. Morot Housing
9. Suction Cup Bracket
12. Suction Cup
17. Duck-Bill
18. Pump Hanger

Application III

Wet/Dry Filtration Systems, Protein Skimmer & Sumps

1. Main Housing Strainer
2. Housing Endcap Retainer
3. Housing Endcap
4. O-Ring
5. Vortex Impeller Assembly
6. Ceramic Shift
7. Shaft Endcap
8. Morot Housing
9. Suction Cup Bracket
12. Suction Cup
17. Duck-Bill
18. Pump Hanger

Warranty Information

To activate your 3 year warranty, download, print and mail the PDF form to the address listed, along with a copy of your receipt within 15 days of purchase. You can also activate your warranty by submiting the online form below. Customer service will contact you for additional details.

Download the Rio^® Hyper Flow warranty PDF form.

The date of purchase and a copy of the receipt is required to activate your warranty by completing and returning the bottom section of the downloaded PDF form. Please keep your warranty and purchase history in a safe place.

To activate your 3 year warranty, complete the following form within 15 days of purchase:

Name required Address required City required State required Zip Code required Phone required Email required Model required Serial Number required

Purchase Details:

Retail Store Name required Store Address required Store City, State, Zip Code required Date of purchase required Please attach a copy of your receipt required Prove you're human! What is 5 + 3? required

Hikari USA's Privacy Policy

Pump Size(s)

Item #	Model	Gallons per Hour	Watts	Output	Dimensions
			(115V/60Hz)		(L x W x H)
#R27234	Rio® 4HF	320 GPH (1230 LPH)	10 W	16 mm (5/8 in)	3.9 x 2 x 2.5 in
#R27001	Rio® 6HF	440 GPH (1680 LPH)	15 W	16 mm (5/8 in)	3.9 x 2 x 2.5 in
#R27002	Rio® 8HF	640 GPH (2460 LPH)	30 W	19 mm (3/4 in)	4.4 x 2.3 x 2.8 in
#R27003	Rio® 10HF	750 GPH (2870 LPH)	35 W	19 mm (3/4 in)	4.4 x 2.3 x 2.8 in
#R27004	Rio® 12HF	810 GPH (3210 LPH)	40 W	19 mm (3/4 in)	4.9 x 2.5 x 3.2 in
#R27005	Rio® 14HF	960 GPH (3660 LPH)	45 W	19 mm (3/4 in)	4.9 x 2.5 x 3.2 in
#R27006	Rio® 17HF	1230 GPH (4680 LPH)	55 W	25 mm (1 in)	5.4 x 2.7 x 3.7 in
#R27007	Rio® 20HF	1370 GPH (5210 LPH)	60 W	25 mm (1 in)	5.4 x 2.7 x 3.7 in
#R27008	Rio® 26HF	1760 GPH (6720 LPH)	100 W	25 mm (1 in)	5.9 x 3.1 x 4.2 in
#R27009	Rio® 32HF	2110 GPH (8030 LPH)	115 W	25 mm (1 in)	5.9 x 3.1 x 4.2 in

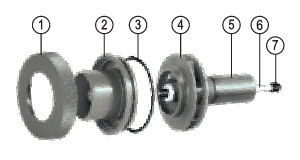

Replacement Impeller with Ceramic Shaft

The magnetic impeller may need to be replaced periodically to maintain peak performance. Replace impeller or ceramic shaft if you notice any signs of excess wear on impeller, ceramic shaft, and/or shaft endcap. Monthly cleaning is highly recommended.

Rio^® Hyper Flow pump replacement parts are not available online. Please contact our customer service team, through our online form or send an email to fish@hikariusa.com with the specific model and replacement pieces needed.

Item #	Item Name	Compatible Model(s)
#R27529	Rio® 20HF Impeller Kit	Rio® 20HF
